- Place of Origin:CN;ZHE
- Type:Permanent
- Composite:Rare Earth Magnet
- Application:Industrial Magnet
- Shape:Block
- Brand Name:SDM
- Model Number:SDMNB

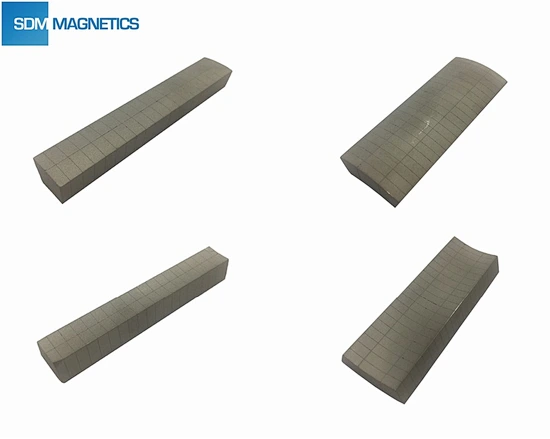

Most Powerful Block Samarium Cobalt Smco Magnet
Sintered Neodymium-Iron-Boron (NdFeB) magnets are also referred to as “neo” magnets. They are particularly suitable for high volume production in a wide variety of shape and size. Precise dimensional control is achieved in machining processes.
| Grade | Residual Induction (Br) | Coercive Force (Hcb) | Intrinsic Coercive Force (Hcj) | Max Energy Product (BH)max | Max Working Temp. | ||||
| T | kGs | kA/m | kOe | kA/m | kOe | Kj/m³ | MGOe | (°C) | |
| N35 | 1.17-1.22 | 11.7-12.2 | ≥ 868 | ≥ 10.9 | ≥ 955 | ≥ 12 | 263-287 | 33-36 | 80 |
| N38 | 1.22-1.25 | 12.2-12.5 | ≥ 899 | ≥ 11.3 | ≥ 955 | ≥ 12 | 287-310 | 36-39 | 80 |
| N40 | 1.25-1.28 | 12.5-12.8 | ≥ 907 | ≥ 11.4 | ≥ 955 | ≥ 12 | 302-326 | 38-41 | 80 |
| N42 | 1.28-1.32 | 12.8-13.2 | ≥ 915 | ≥ 11.5 | ≥ 955 | ≥ 12 | 318-342 | 40-43 | 80 |
| N45 | 1.32-1.38 | 13.2-13.8 | ≥ 923 | ≥ 11.6 | ≥ 955 | ≥ 12 | 342-366 | 43-46 | 80 |
| N48 | 1.38-1.42 | 13.8-14.2 | ≥ 923 | ≥ 11.6 | ≥ 955 | ≥ 12 | 366-390 | 46-49 | 80 |
| N50 | 1.40-1.45 | 14.0-14.5 | ≥ 796 | ≥ 10 | ≥ 876 | ≥ 11 | 374-406 | 47-51 | 60 |
| N52 | 1.43-1.48 | 14.3-14.8 | ≥ 796 | ≥ 10 | ≥ 876 | ≥ 11 | 390-422 | 49-53 | 60 |
| N35M | 1.17-1.22 | 11.7-12.2 | ≥ 868 | ≥ 10.9 | ≥ 1114 | ≥ 14 | 263-287 | 33-36 | 100 |
| N38M | 1.22-1.25 | 12.2-12.5 | ≥ 899 | ≥ 11.3 | ≥ 1114 | ≥ 14 | 287-310 | 36-39 | 100 |
| N40M | 1.25-1.28 | 12.5-12.8 | ≥ 923 | ≥ 11.6 | ≥ 1114 | ≥ 14 | 302-326 | 38-41 | 100 |
| N42M | 1.28-1.32 | 12.8-13.2 | ≥ 955 | ≥ 12 | ≥ 1114 | ≥ 14 | 318-342 | 40-43 | 100 |
| N45M | 1.32-1.38 | 13.2-13.8 | ≥ 955 | ≥ 12.5 | ≥ 1114 | ≥ 14 | 342-366 | 43-46 | 100 |
| N48M | 1.37-1.43 | 13.7-14.3 | ≥ 1027 | ≥ 12.9 | ≥ 1114 | ≥ 14 | 366-390 | 46-49 | 100 |
| N50M | 1.40-1.45 | 14.0-14.5 | ≥ 1033 | ≥ 13 | ≥ 1114 | ≥ 14 | 382-406 | 48-51 | 100 |
| N35H | 1.17-1.22 | 11.7-12.2 | ≥ 868 | ≥ 10.9 | ≥ 1353 | ≥ 17 | 263-287 | 33-36 | 120 |
| N38H | 1.22-1.25 | 12.2-12.5 | ≥ 899 | ≥ 11.3 | ≥ 1353 | ≥ 17 | 287-310 | 36-39 | 120 |
| N40H | 1.25-1.28 | 12.5-12.8 | ≥ 923 | ≥ 11.6 | ≥ 1353 | ≥ 17 | 302-326 | 38-41 | 120 |
| N42H | 1.28-1.32 | 12.8-13.2 | ≥ 955 | ≥ 12 | ≥ 1353 | ≥ 17 | 318-342 | 40-43 | 120 |
| N45H | 1.32-1.36 | 13.2-13.6 | ≥ 963 | ≥ 12.1 | ≥ 1353 | ≥ 17 | 326-358 | 43-46 | 120 |
| N48H | 1.37-1.43 | 13.7-14.3 | ≥ 995 | 12.5 | ≥ 1353 | ≥ 17 | 366-390 | 46-49 | 120 |
| N35SH | 1.17-1.22 | 11.7-12.2 | ≥ 876 | ≥ 11 | ≥ 1592 | ≥ 20 | 263-287 | 33-36 | 150 |
| N38SH | 1.22-1.25 | 12.2-12.5 | ≥ 907 | ≥ 11.4 | ≥ 1592 | ≥ 20 | 287-310 | 36-39 | 150 |
| N40SH | 1.25-1.28 | 12.5-12.8 | ≥ 939 | ≥ 11.8 | ≥ 1592 | ≥ 20 | 302-326 | 38-41 | 150 |
| N42SH | 1.28-1.32 | 12.8-13.2 | ≥ 987 | ≥ 12.4 | ≥ 1592 | ≥ 20 | 318-342 | 40-43 | 150 |
| N45SH | 1.32-1.38 | 13.2-13.8 | ≥ 1003 | ≥ 12.6 | ≥ 1592 | ≥ 20 | 342-366 | 43-46 | 150 |
| N28UH | 1.04-108 | 10.4-10.8 | ≥ 764 | ≥ 9.6 | ≥ 1990 | ≥ 25 | 207-231 | 26-29 | 180 |
| N30UH | 1.08-1.13 | 10.8-11.3 | ≥ 812 | ≥ 10.2 | ≥ 1990 | ≥ 25 | 223-247 | 28-31 | 180 |
| N33UH | 1.13-1.17 | 11.3-11.7 | ≥ 852 | ≥ 10.7 | ≥ 1990 | ≥ 25 | 247-271 | 31-34 | 180 |
| N35UH | 1.17-1.22 | 11.7-12.2 | ≥ 860 | ≥ 10.8 | ≥ 1990 | ≥ 25 | 263-287 | 33-36 | 180 |
| N38UH | 1.22-1.25 | 12.2-12.5 | ≥ 876 | ≥ 11 | ≥ 1990 | ≥ 25 | 287-310 | 36-39 | 180 |
| N40UH | 1.25-1.28 | 12.5-12.8 | ≥ 899 | ≥ 11.3 | ≥ 1990 | ≥ 25 | 302-326 | 38-41 | 180 |
| N42UH | 1.28-1.32 | 12.8-13.2 | ≥ 899 | ≥ 11.3 | ≥ 1990 | ≥ 25 | 318-342 | 40-43 | 180 |
| N28EH | 1.04-1.08 | 10.4-10.8 | ≥ 780 | ≥ 9.8 | ≥ 2388 | ≥ 30 | 207-231 | 26-29 | 200 |
| N30EH | 1.08-1.13 | 10.8-11.3 | ≥ 812 | ≥ 10.2 | ≥ 2388 | ≥ 30 | 223-247 | 28-31 | 200 |
| N33EH | 1.13-1.17 | 11.3-11.7 | ≥ 836 | ≥ 10.5 | ≥ 2388 | ≥ 30 | 247-271 | 31-34 | 200 |
| N35EH | 1.17-1.22 | 11.7-12.2 | ≥ 876 | ≥ 11 | ≥ 2388 | ≥ 30 | 263-287 | 33-36 | 200 |
| N38EH | 1.22-1.25 | 12.2-12.5 | ≥ 899 | ≥ 11.3 | ≥ 2388 | ≥ 30 | 287-310 | 36-39 | 200 |
| N40EH | 1.25-1.28 | 12.5-12.8 | ≥ 899 | ≥ 11.3 | ≥ 2388 | ≥ 30 | 302-326 | 38-41 | 200 |
| N28AH | 1.04-1.08 | 10.4-10.8 | ≥ 787 | ≥ 9.9 | ≥ 2624 | ≥ 33 | 207-231 | 26-29 | 230 |
| N30AH | 1.08-1.13 | 10.8-11.3 | ≥ 819 | 10.3 | ≥ 2624 | ≥ 33 | 223-247 | 28-31 | 230 |
| N33AH | 1.13-1.17 | 11.3-11.7 | ≥ 843 | ≥ 10.6 | ≥ 2624 | ≥ 33 | 247-271 | 31-34 | 230 |
| N35AH | 1.17-1.22 | 11.7-12.2 | ≥ 876 | ≥ 11 | ≥ 2624 | ≥ 33 | 263-287 | 33-36 | 230 |
| N38AH | 1.22-1.25 | 12.2-12.5 | ≥ 899 | ≥ 11.3 | ≥ 2624 | ≥ 33 | 287-310 | 36-39 | 230 |
| Shape | max.size | min.size |
| Block | 240*100*40mm | 2*2*1mm |
| Cylinder | D240*40mm | D2*1mm |
| Ring | OD240*40mm (hole size customized) | D5*1*1mm |
| Arc | per your request | |
| And other special shape magnet per your request | ||
SDM Magnetics has been supplying magnetic materials since 2004. We are located in Hangzhou, which is about 200 kilometers from Shanghai and Ningbo.

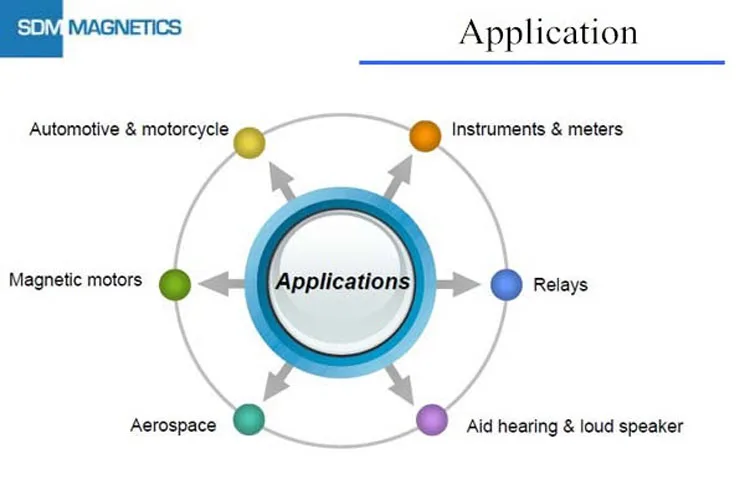

Our products are export to American, European and Asian countries. Our customers include motor manufacturers, industries equipments producers and so on. We are a supplier of Siemens Ltd Australia, GM, BMW, BENTLEY, and REGAL BELOIT in European.
Quality assurance from SDM: ISO9001, ISO14001, TS16949.
Products: NdFeB, SmCo, AlNiCo permanent magnets and assemblies; Bonded NdFeB and Ferrite magnets.
