- Place of Origin:CN;ZHE
- Type:Permanent
- Composite:Neodymium Magnet
- Shape:Block
- Application:Industrial Magnet
- Brand Name:SDM
- Model Number:SDMSB
12 Years' Professional Permanent Magnet Manufacturer;
USD $56000 Alibaba Trade Assurance to Secure Your Transaction .
Top 3 Alibaba Permanent Magnet Supplier;
1.What is Shuttering Magnet?
Precast concrete is treated as a new generation of building material of construction industry, and precast concrete has been widely applied in Europe, America and Middle Eastern.
Shuttering magnet is one the most important accessory to precast concrete system. Shuttering magnet is designed to fix the side rails and blockouts when pouring concrete.

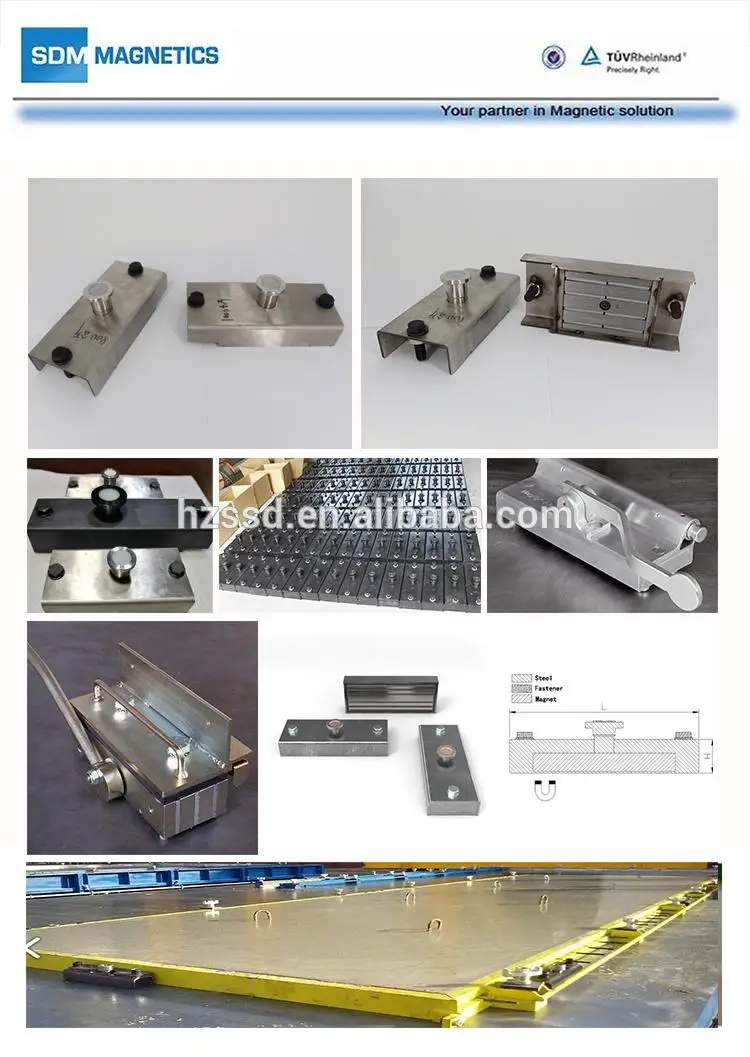

2.Structure of Shuttering Magnet
3.Working principle of Shuttering Magnet

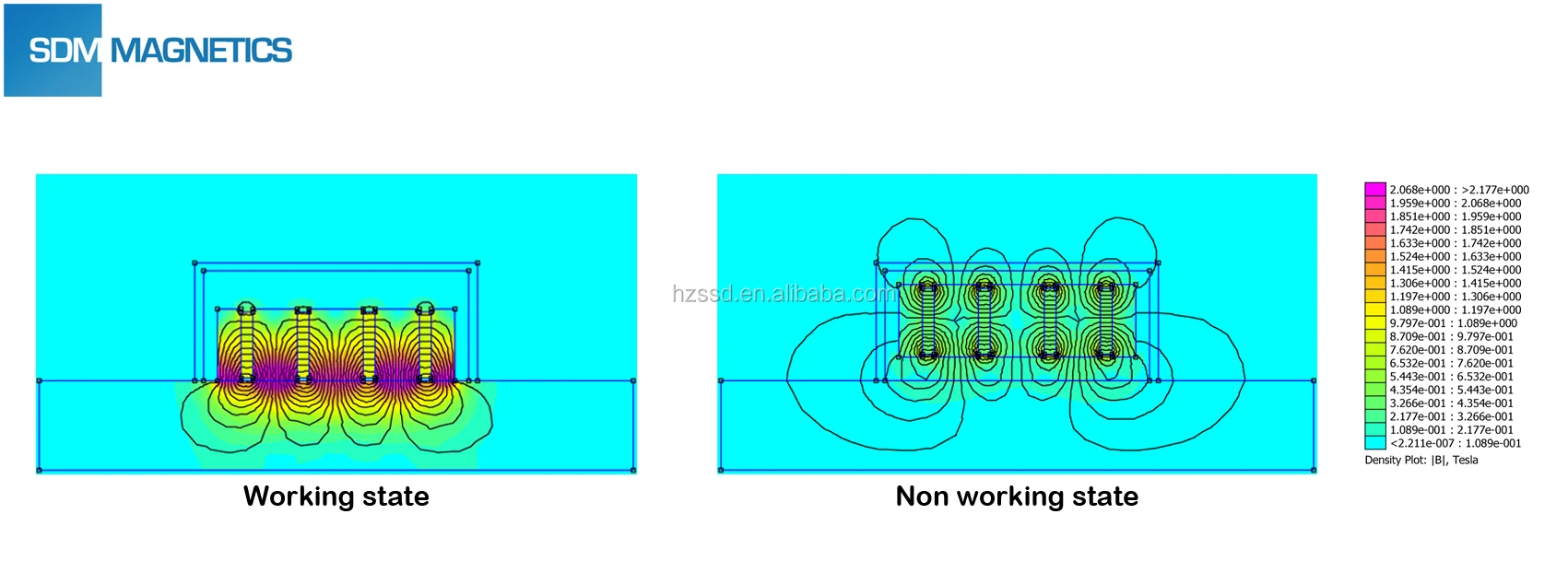

The core component of the whole shuttering magnet is the magnetic array. Neodymium magnets and steel plates form a special magnetic circuit which provides extremely strong attractive force, and the attractive force is dominated by the air gap. The relevant magnetic circuit as below models shows.
SDM Magnetics has been collected many experience on shuttering magnet. SDM Magnetics will help provide the reliable solution to customers relies on outstanding simulation software, production and testing facilities.
4.Advantages of Shuttering Magnet
- Very easy and precise positioning, hence reducing complexity and time of installation.
- Excellent applicability, and different concrete products can be finished on samestainless steel board.
- No longer need welding and bolting process which will damage stainless steel board.
- Long operating life and reusable. Payback will be also shorter.
- Significantly improve operating environment and simultaneously ensure the site safety.
5.Usage Method of Shuttering Magnet
- Place shutter magnets on the specified location of stainless steel board.
- Shuttering magnet will suck onboard after pressed clamping handle.
- Use professional crowbar to pry clamping handle, the attractive force will reduce with the increase ofthe air gap between the magnetic array and board.
- Fixingscrews can secure different kind of side rails and blockouts.
It should be noted that thickness and smoothness of stainless steel will affect the attractive force.
6.Maintenance Method of Shuttering Magnet
- Maximally prevent damage of magnets, avoid external force.
- It is similar to magnetic lifter that the working surface of magnetic array should maintain clean and smooth.
- Flexibility of clamping handle will be influenced by invading scrap-iron and concrete.
- Properly rust prevention.
- The Max. Operating Temperature of simple shuttering magnet should be lessthan 80 degree
- Safetytips should refer to the permanent

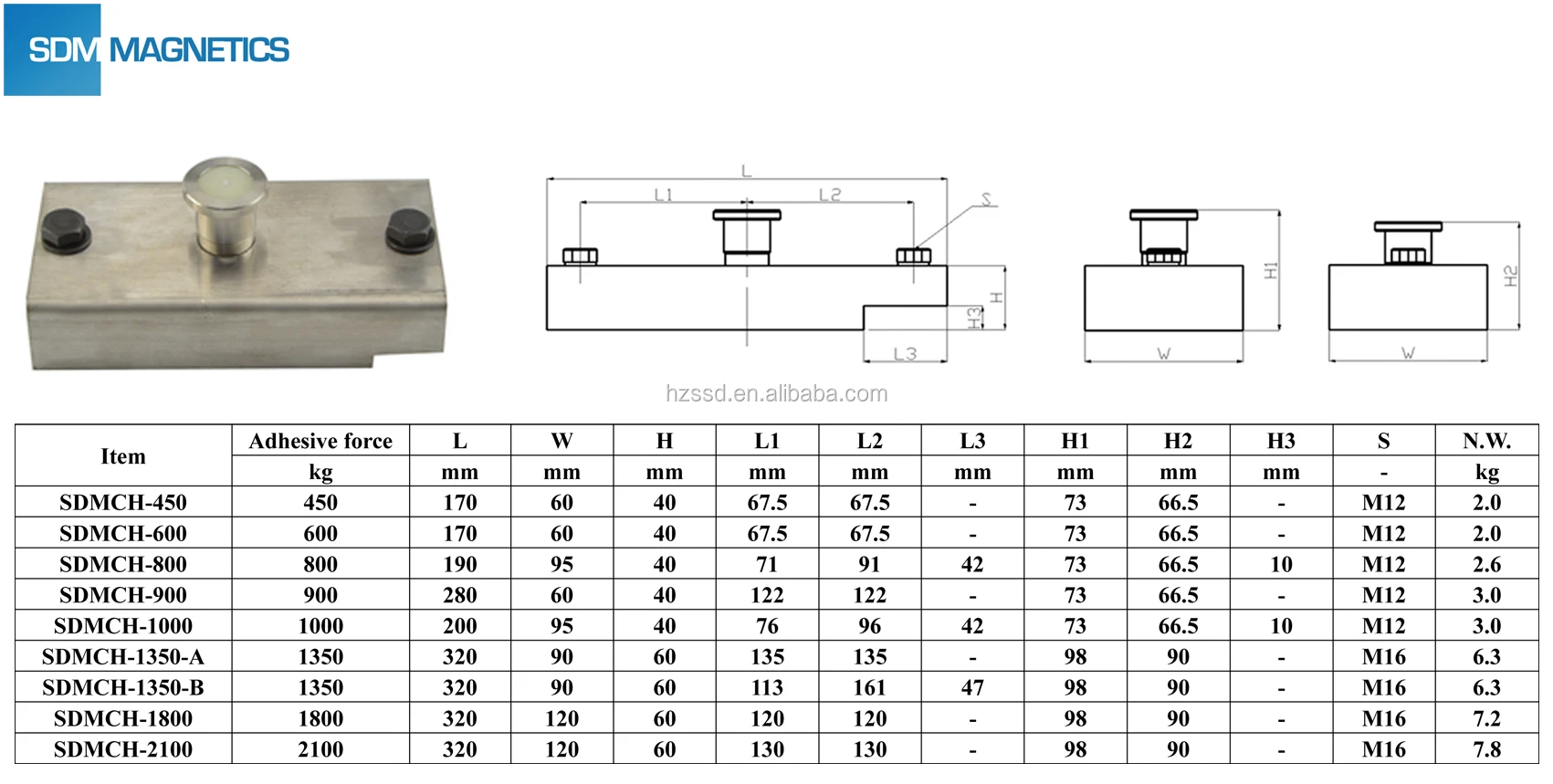

7.Main Technical Parameters of Shuttering Magnet
8.SDM Quality Assurance
As a professional 22mm magnet button manufacturer, we are certified by ISO9001:2008, ISO/TS16949:2009, RoHS, REACH, TUV, SGS
9.Shipping Details:
A: We have a discount price with Fedex and DHL. So if the weight is under 100Kg, you can those two shipping companies. But you can also choose TNT, UPS or any other shipping companies if you like. We'll use iron boxes to shield the magnetics force for air shipping.
B: When the weight is over 100Kg,we think sea shipping is more reasonable. We have our own forwarder, you can also entrust your own forwarder.
C: Anyway, we'll respect your choices.
10.Exhibitions
CWIEME BERLIN every year, Germany
HANNOVER MESSE every year, Germany
CWIEME CHICAGO every year, USA
You're more than welcomed to visit us at above exhibitions every year. We look forward to a face to face meeting with you.
11. Flexible Payment Terms
We accept payment by TT, Patpal, West Union and L/C
12.How to find us
Our manufacturing plants are located in Tonglu, Hangzhou which are only one hour by car from Hangzhou airport or railway station.
We are also only one hour by train from Shanghai or Ningbo, pickup and drop off at Hangzhou Air/Train stations are available if you are traveling to Hangzhou from other cities in China.
13.Company information
Company name: Hangzhou SDM Magnetics Co., Ltd
Foundation: Since 2004
Location: Hangzhou, China
Products: Sintered&Bonded NdFeB, Cast&Sintered Alnico, Sintered SmCo Magnets and relevant Magnetic Assemblies.
Certification: ISO/TS16949, RoHS, REACH, SGS
Customers: GM, BMW, BENTLY, SIEMENS and REGAL BELOIT and etc.
