• Applicable Industries:Building Material Shops
• Applicable Industries:Manufacturing Plant
• Applicable Industries:Farms
• Condition:New
• Place of Origin:CN;ZHE
• After-sales Service Provided:Online support
• Warranty:1
• Brand Name:SDM
• Certification:ISO9001, CE, TS16949
• Dimension(L*W*H):Customised

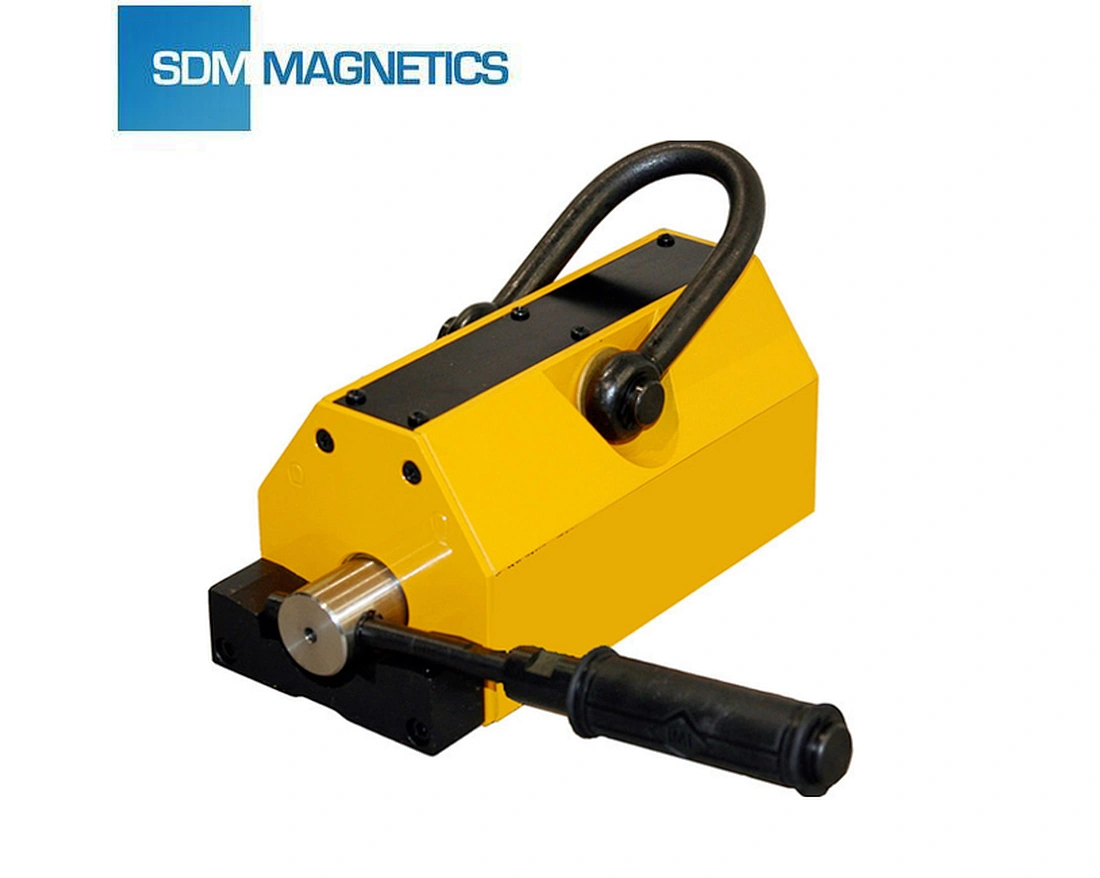

CE Certificated Custom Made Lifting Magnet 600kg Pull Force

1.Magnetic Tool ----Lifting Magnets

The magnetic lifter can be divided into electric magnetic lifter and permanent magnetic lifter. Both electric magnetic lifter and permanent magnetic lifter will generate a strong magnetic field on their working surface during the work process. The magnetic field line will cross the ferromagnetic workpiece during working, and the workpiece can be treated as part of the main magnetic circuit.

2.How the Permanent Magnetic Lifter Works?

The relative movement between the magnetic systems will achieve adding and cancellation of magnetic field strength on the working surface, then ensure the switching between load and unload.

3.The Advances of Lifting Magnet ?

1.No power failure :

 Permanent magnets supply the lifting force, they are always ready to go to work. Never any loss of power. Never need remagnetizing. Not dependent upon outside power source.

2.Safe:

Safe practice in use of magnetic lifts dictates that maximum working load be no more than half the test load. These magnets have been load tested at twice the safe working load shown in table.

3.Slim structure, and easy to operate.

Permanent magnetic lifting device is lightweight per pound of lifting capacity. Easily portable for use indoors or outdoors. Perfected to handle smooth-surfaced, heavy, solid ferrous blocks.

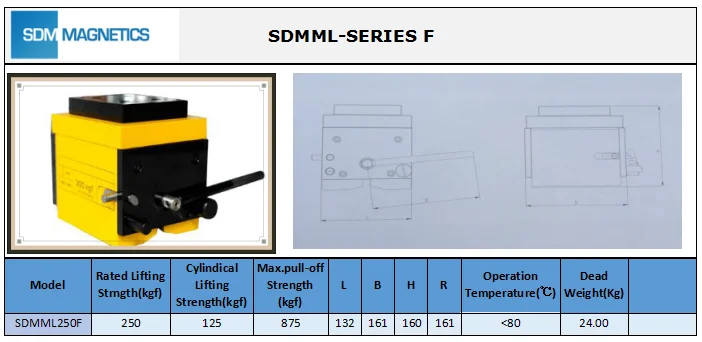

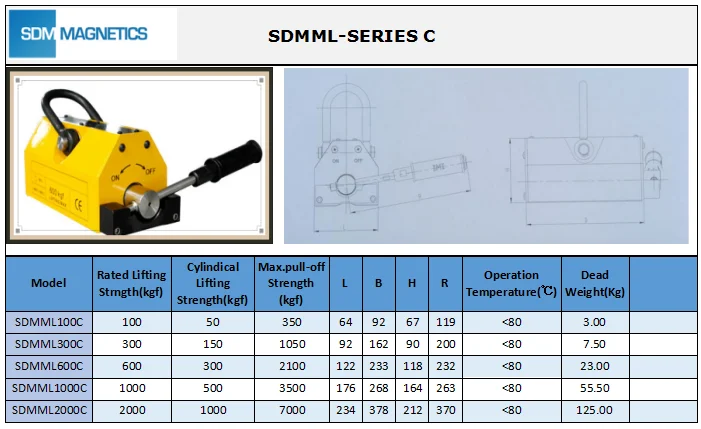

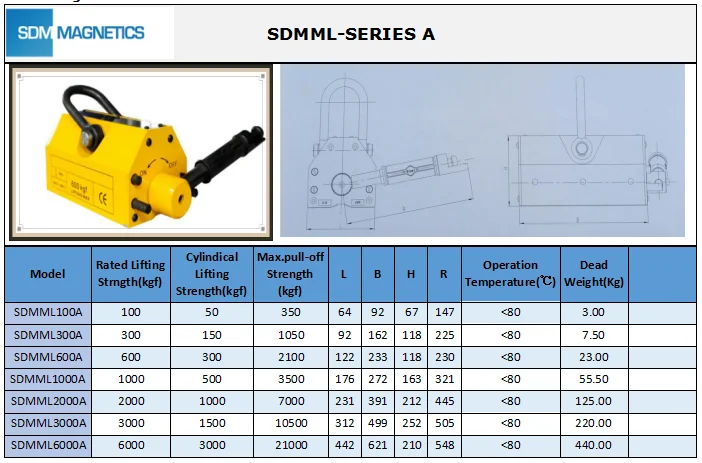

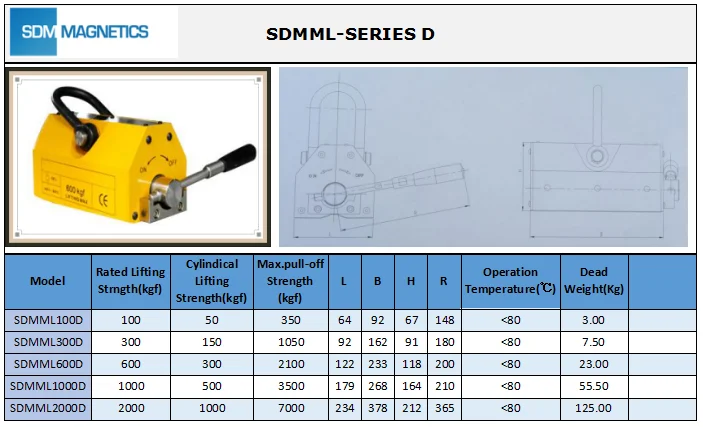

4.Specification of Permanent Lifting Magnet

5.Our biggest advantages

1:).Strategic cooperation with China’s No.1rare earth miner CHINALCO, which enables us strong and safe backup for rare earth raw materials cost stability, 3 x -3% annual price down guaranteed.

2:). ISO/TS 16949, VDA 6.3, ISO9001, ISO14001 certified company, RoHS, REACH, SGS, FDA complied product.

3:). 0 PPM performance for General Motor's OEM since 2010, remarkable customers such as SIEMENS, BMW, REGAL BELOIT, NIDEC, ELECTROLUX, S&T Motiv.

4:).Over 100 million magnets delivered to American, European, Asian and African countries.

5:). Stable production : 2000 sets per month

6.:Quality Assurance :

1.:).Safety Curve Capabilities of Permanent Lifting magnet

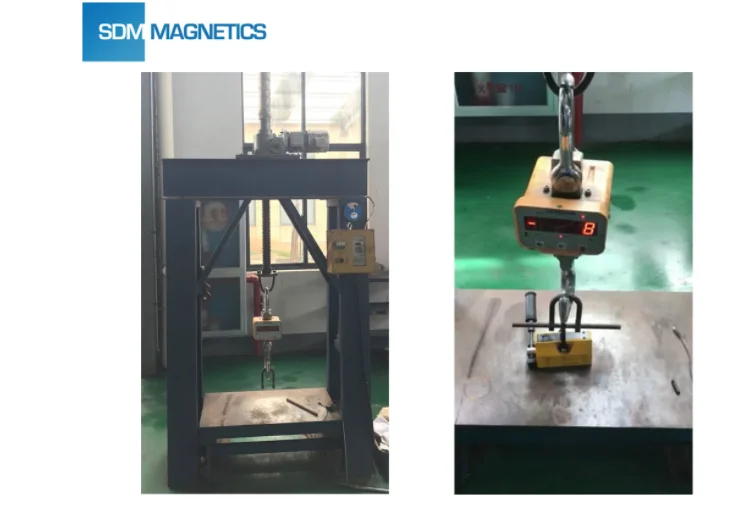

2.:).Testing of Permanent Lifting Magnet

3.:)Quality System:

4.:).You could pay for order by Alibaba trade assurance , quality of each lifting magnet is promised .

5.:).One stop service from R&D to mass production.

7:Package

8:Exhibition

     We Will Join CWIEME Berlin every year;

      We Will Join  HANNOVER MESSE every year;

      We Will Join  CWIEME Chicago every year;

If you are convenient, we could talk face to face !!

9:Delivery

  We have contract price with FedEx, DHL, UPS and TNT.

  We have our own Sea and Air forwarder.

   Will Give you the best support about the freight fee.

10: Payment

     We accept T/T, Paypal, Western Union, ESCROW and L/C

11: Our workshop

12: FAQ

1:How long will you give me the reply?

we will contact you in 12 hours as soon as we can.

2:Could I get samples?

Yes,we have materials in stock to help you to get the samples as soon as we can.

3:How is the price?

As we believe the quality is the most important,we will provide the best quality magnet we can with reasonable price.

4:Could you provide me the shortest lead time?

We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.

5:If I have paid,when will you help me to produce?

When we have received the money in our account,we will give you the receipt and arrange to produce immediately.
