- Place of Origin:CN;ZHE
- Type:Permanent
- Composite:Neodymium Magnet
- Application:Industrial Magnet
- Shape:SEGMENT
- Brand Name:SDM
- Model Number:SDMNS
12 Years' Professional Permanent Magnet Manufacturer;
USD $56000 Alibaba Trade Assurance to Secure Your Transaction .
Top 3 Alibaba Permanent Magnet Supplier;

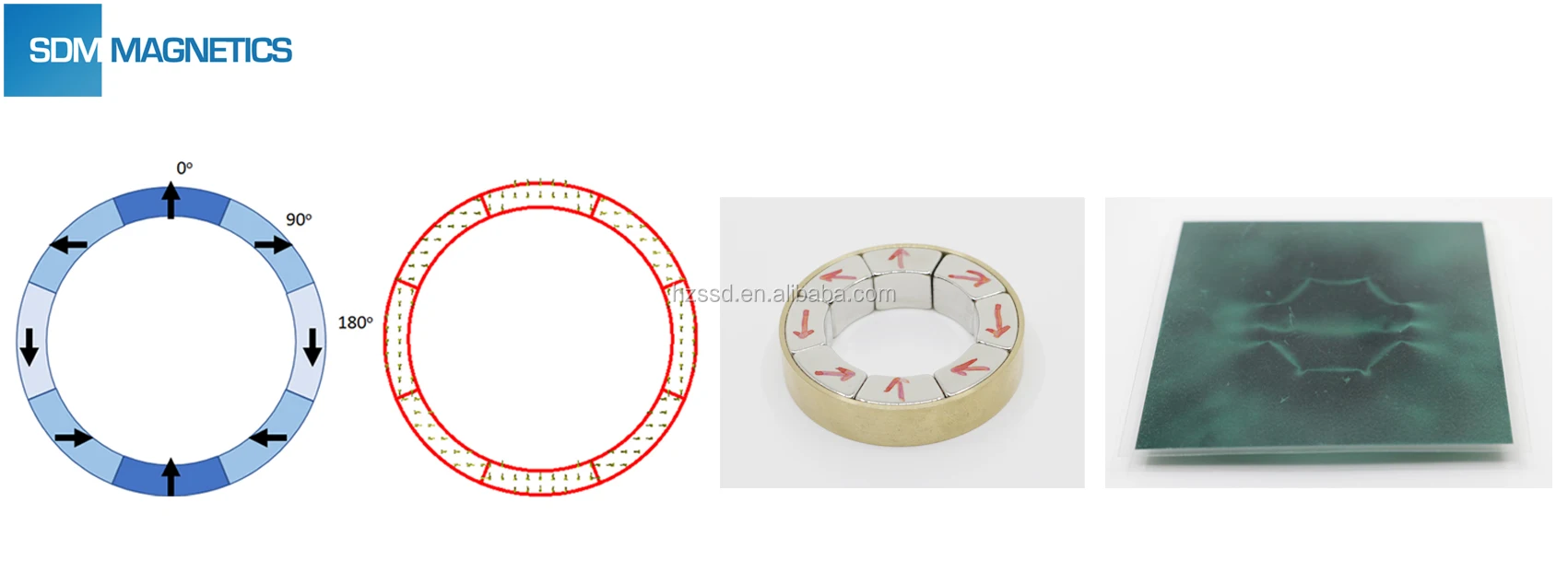

1.What is Halbach Array magnet
Halbach array is a kind of specialized and interesting arrangement of permanent magnet which invented by Klaus Halbach on 1979. The array was originally designed to help particle accelerators to focus beams on Lawrence Berkely National Laboratory. The magnetization direction of two adjacent magnets in the array differs on a certain angle, hence caused asymmetrical distribution of the magnetic field.
2.Characteristics of Halbach Array magnet
1. Large and uniform magnetic field will be produced by halbacharray in a certain area, and its magnetic field can also exceed the remanence of the magnetic material itself.
2. Halbach array enhance magnetic field on one side, in the meanwhile keeping the field to very low level on the other side.
3.Halbach array have excellent performance when a “gap” is present.
4.Magneticfield of halbach array exhibit sine distribution, and drastically reduces harmonic waves.
5.Effective increase power.
6.Excellent magnetic shielding effect, then obtain outstanding structural

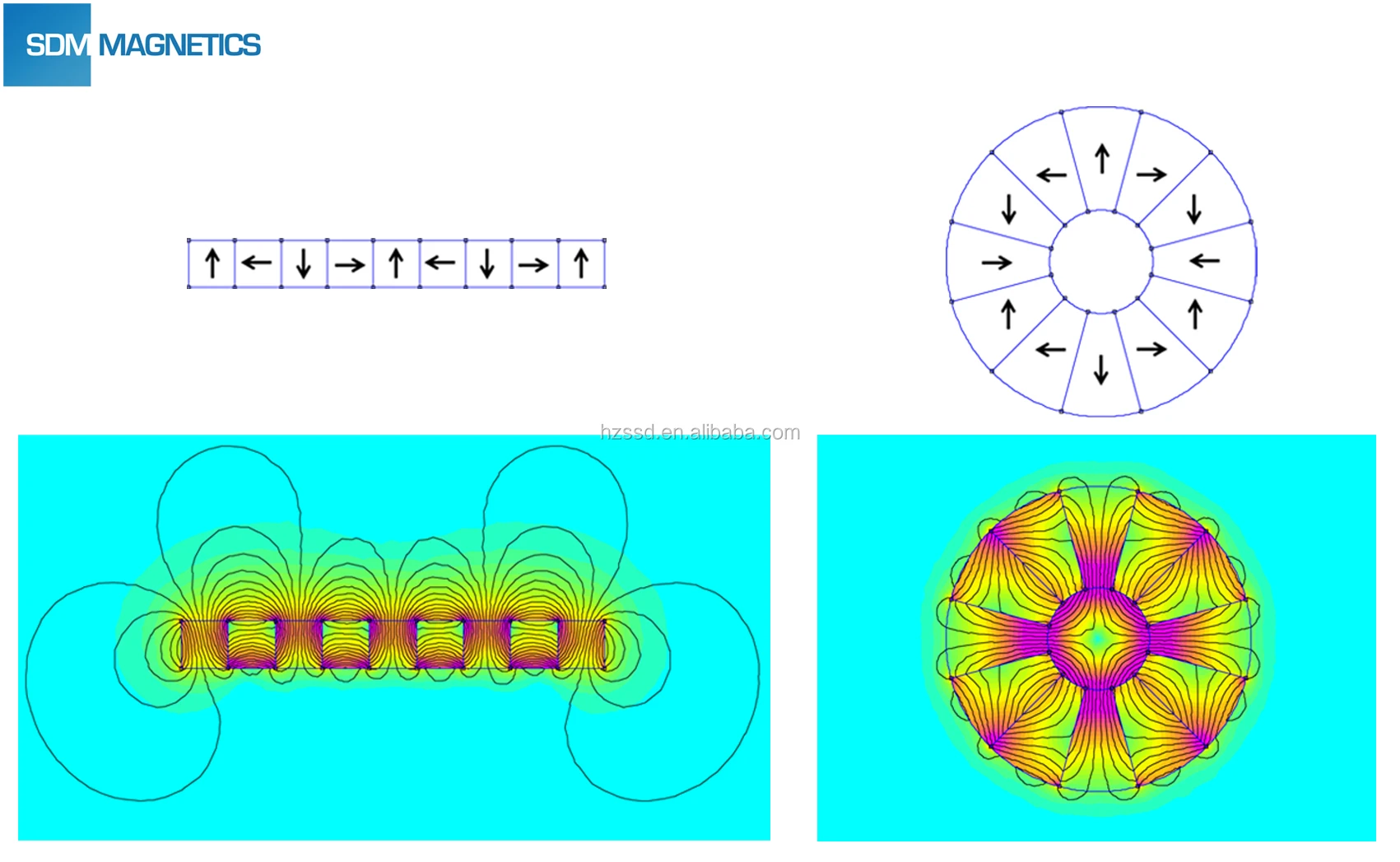

3.Classification of Halbach Arraymagnet

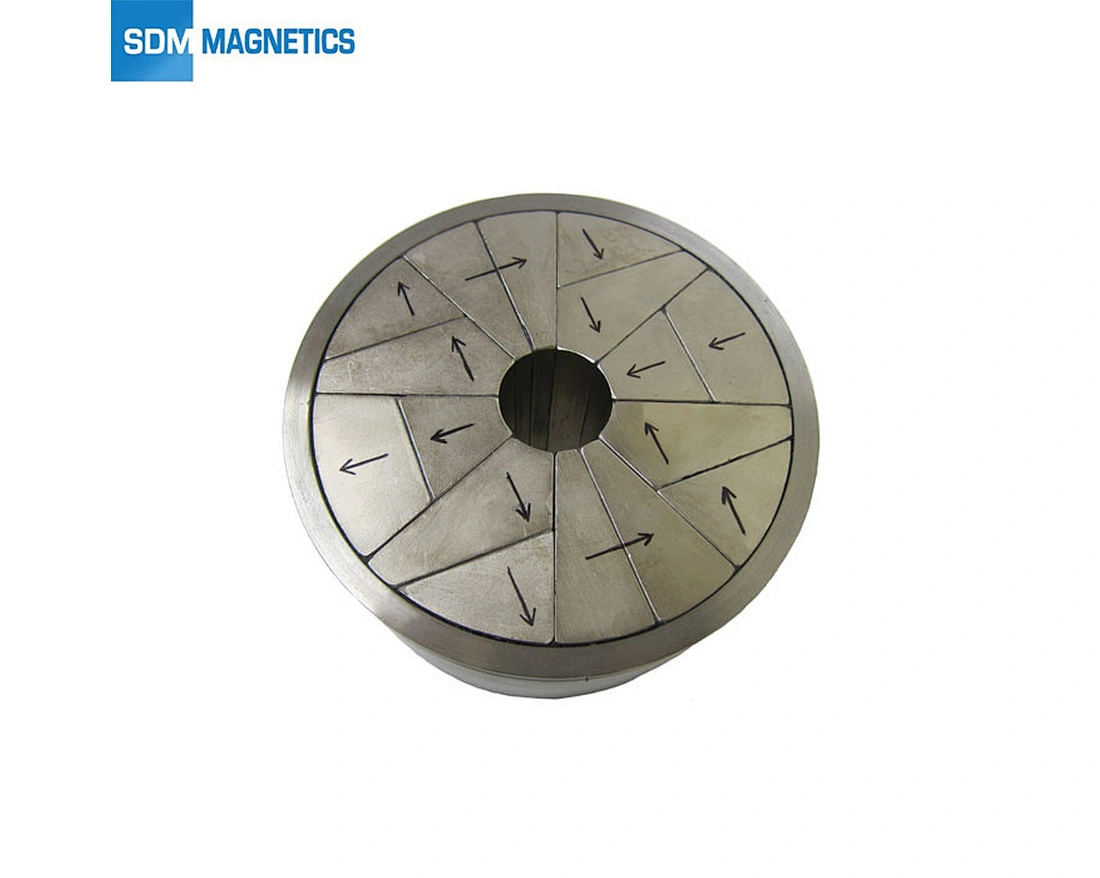

The halbach array mainly includes straight-type halbach array and circular-type halbach array according to geometry. Circular-type halhach array can be further divided into O.D. iteration and I.D. iteration on the basis of the arrangement of the permanent magnet. Different directions and strength will be yielded by different magnet configuration.
4.Applications of Halbach Array magnet
The application includes:
1.Simple fixture and holding.
2.Rotors for DC motor, linear motor, servo motor, magnetic coupling and power generator.
3.Magnetic levitations.
4.High energy physics area, such as the particleaccelerator, free-electron laser device, synchrotron radiation facility, and magnetic lens.
5.Medical
It should be noted that halbach array is extremely difficult to assemble. The magnets need to be assembled under the magnetized state, that it, manufactures should combated the force between repelling magnets. Magnets in halbach array also more susceptible to be demagnetized.

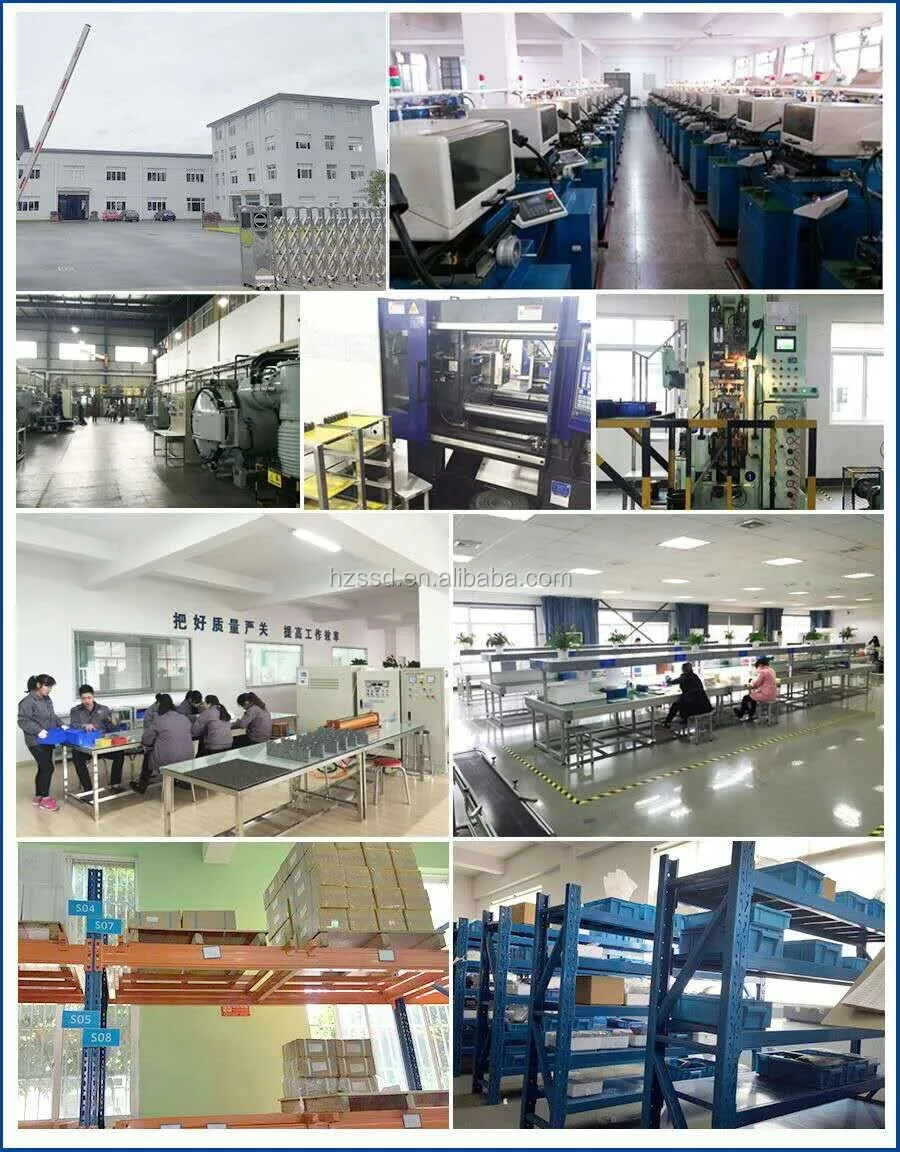

5.Work Shop
6.SDM Quality Assurance
As a professional 22mm magnet button manufacturer, we are certified by ISO9001:2008, ISO/TS16949:2009, RoHS, REACH, TUV, SGS
7.Shipping Details:
A: We have a discount price with Fedex and DHL. So if the weight is under 100Kg, you can those two shipping companies. But you can also choose TNT, UPS or any other shipping companies if you like. We'll use iron boxes to shield the magnetics force for air shipping.
B: When the weight is over 100Kg,we think sea shipping is more reasonable. We have our own forwarder, you can also entrust your own forwarder.
C: Anyway, we'll respect your choices.
8.Exhibitions
CWIEME BERLIN every year, Germany
HANNOVER MESSE every year, Germany
CWIEME CHICAGO every year, USA
You're more than welcomed to visit us at above exhibitions every year. We look forward to a face to face meeting with you.
9. Flexible Payment Terms
We accept payment by TT, Patpal, West Union and L/C
10.How to find us
Our manufacturing plants are located in Tonglu, Hangzhou which are only one hour by car from Hangzhou airport or railway station.
We are also only one hour by train from Shanghai or Ningbo, pickup and drop off at Hangzhou Air/Train stations are available if you are traveling to Hangzhou from other cities in China.
11.Company information
Company name: Hangzhou SDM Magnetics Co., Ltd
Foundation: Since 2004
Location: Hangzhou, China
Products: Sintered&Bonded NdFeB, Cast&Sintered Alnico, Sintered SmCo Magnets and relevant Magnetic Assemblies.
Certification: ISO/TS16949, RoHS, REACH, SGS
Customers: GM, BMW, BENTLY, SIEMENS and REGAL BELOIT and etc.
FAQ
1:How long will you give me the reply?
we will contact you in 12 hours as soon as we can.
2:Could I get samples?
Yes,we have materials in stock to help you to get the samples as soon as we can.
3:How about the quality of the magnets?
We have the certification of ISO,TS and ROSH,we could send the certification test of our company to you.
4:How is the price?
As we believe the quality is the most important,we will provide the best quality magnet we can with reasonable price.
5:Could you provide me the shortest lead time?
We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
6:Could I visit your factory?
Of course,if you need we will help you to visit our factory.
7:If I have paid,when will you help me to produce?
When we have received the money in our account,we will give you the receipt and arrange to produce immediately.
