• Place of Origin:CN;ZHE
• Type:Permanent
• Shape:Pot / Cup Shape
• Application:Industrial Magnet
• Composite:Neodymium Magnet/ Alnico/SmCo
• Brand Name:SDM
• Model Number:SDMP magnet

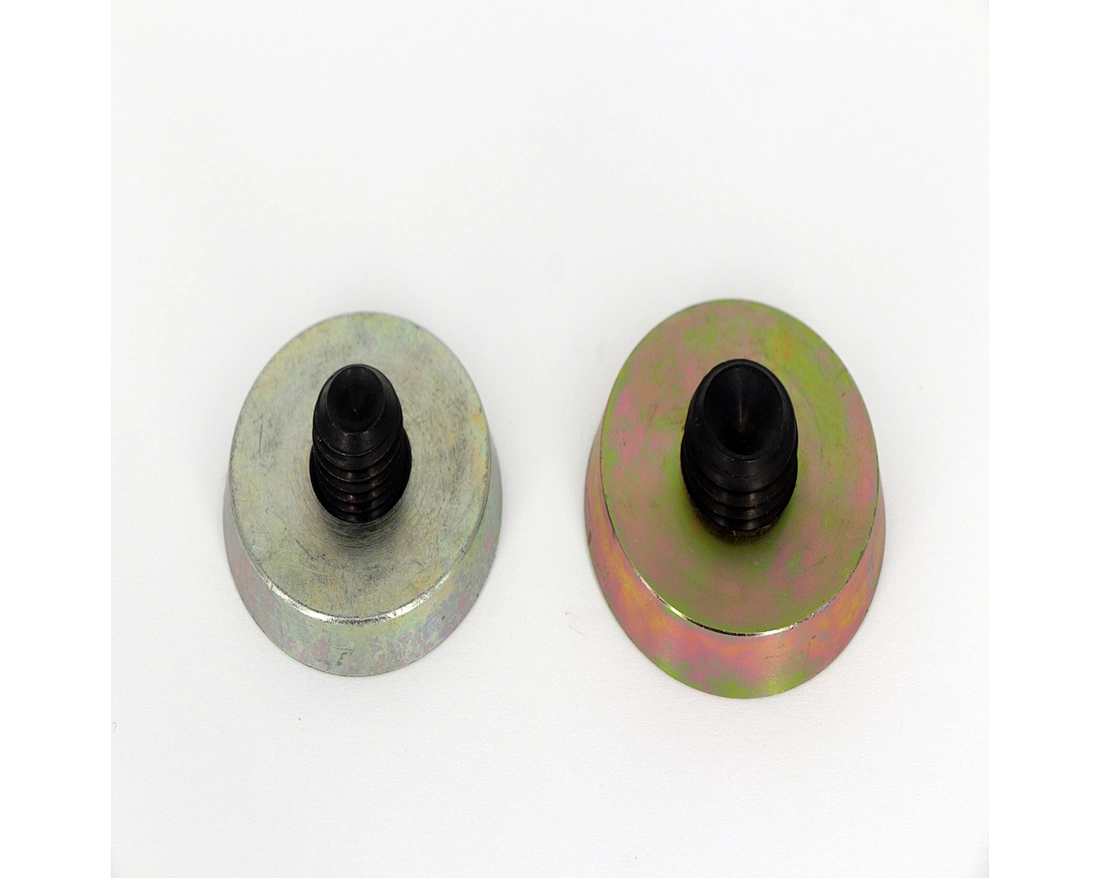

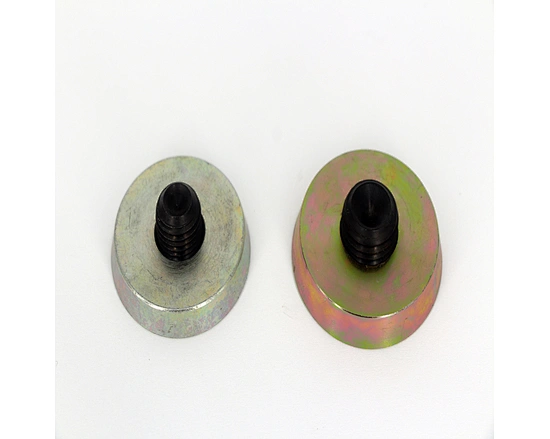

Professional Zinc Color Neodymium Ferrule Locator Magnet for Precast Concrete

This is a circular magnet with very high capacity in a small case. It is used to hold ferrules onto the casting bed in position during a concrete pour.

MAGNETIC Ferrule Locators have a threaded steel core with a powerful magnets built into the base. The base has a square pocked machined into it for the ½"drive removal tool. The core is encased in a urethane shell for easy removal from the concrete Magnetic locators are used to mount Ferrules to a steel form, instead of drilling holes. The magnetic base is 2-5/8"wide and recesses the Ferrule insert by ½ inch. Magnet base is removed from the concrete using a ½"drive ratchet. Ferrules are available in 1/4"3/8", 1/2", 5/8", 3/4", 7/8", 1", 1-1/8", 1-1/4", and 1-1/2"thread diameters.

If you need any technique question, please contact me phone 15067170139 or skype kim-sdm.

2.SDM Advantages:

A. Strategic cooperation with China’s No.1 rare earth miner CHINALCO, which enables us strong and safe backup for rare earth raw materials cost stability, 3 x -3% annual price down guaranteed.

B. ISO/TS 16949, VDA 6.3, ISO9001, ISO14001 certified company, RoHS, REACH, SGS, FDA complied product.

C. 0 PPM performance for General Motor's OEM since 2010, remarkable customers such as SIEMENS, BMW, REGAL BELOIT, NIDEC, ELECTROLUX, S&T Motiv.

D. Over 100 million magnets delivered to American, European, Asian and African countries.

E. One stop service from R&D to mass production.

 Customized Neodymium Magnet and Magnetic Assemblies with FAST delivery in 7-15days.

3.SDM Quality Assurance

As a professional neodymium magnet manufacturer, we are certified by ISO9001:2008, ISO/TS16949:2009, RoHS, REACH, TUV, SGS

6.Standard Packing and Shipment

The package for neodymium we use:  Sea Pallet / Air Carton / Express Packaging / Plastic Tube / Wooden Case / Vacumm Package and any other packing terms as per your requirement

7.SDM Workshops

Company name: Hangzhou SDM Magnetics Co., Ltd

Foundation: Since 2004

Location: Hangzhou, China

Products: Sintered&Bonded NdFeB, Cast&Sintered Alnico, Sintered SmCo Magnets and relevant Magnetic Assemblies.

Certification: ISO/TS16949, RoHS, REACH, SGS

Customers: GM, BMW, BENTLY, SIEMENS and REGAL BELOIT and etc.

 SDM Magnetics Co., Ltd. is a leading Chinese manufacturer of high performance neodymium magnets and neodymium magnetic assemblies with ISO9001:2008, ISO/TS 16949 and ISO14001 certificates. SDM serves a variety of markets from consumer electronics, industrial automation, automotive, green energy, household appliances, medical, aerospace and telecommunications. SDM’s magnets are used in motors, speakers, generators, sensors, compressors, MRI, magnetic chucks and separators etc. N35 Neodymium Magnet is widely used in all industry.

To meet the more and more demanding markets, SDM has been concentrating on manufacturing technologies for quality stability and cost reduction. Since 2010 the company has been supplying magnets to General Motors’ OEM with 0 PPM. With Dysprosium infiltration technology, we are able to offer competitive prices for high grade Neodymium magnets. The company has also built up a strategic cooperation with China’s No.1 rare earth miner CHINALCO, which gives us strong and safe backup for rare earth raw materials.

Over the last ten years SDM export 85% of its products to American, European, Asian and African countries. With such wide range of neodymium and Neodymium magnet material options, our professional technicians are available to help solve your magnetic needs and choose the most cost effective material for you.
